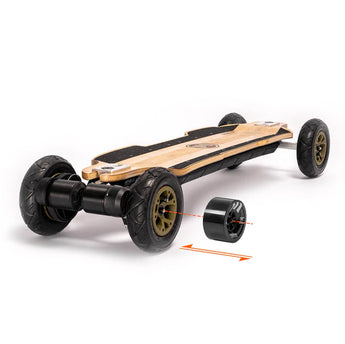

Diablo Bamboo 2 in 1 Electric Skateboard

DECK MATERIALS: 3-Ply Bamboo, 2-Ply Fibreglass

DECK LENGTH: 101cm (39.7")

WHEEL BASE: 97-99.3cm (38-39")

TRUCKS: Evolve Supercarve 2 - Forged/CNC  - Silver Finish

WHEELS:

• All Terrain: Evolve 175mm/7 inch pneumatic tyres.
• Street: Evolve custom-formula 97mm, 76a urethane wheels, made in USA - Compatible with Evolve All-Terrain Conversion Kits.

MOTOR: Dual 6374 3500w rated  (7000w Total) custom brushless sensored motors

MOTOR CONTROLLER / ESC: EFOC 2 - Evolve Custom 50V, 200A Dual-Motor Driver, FOC motor commutation, Bluetooth Connection.

BEARINGS: Evolve Precision Bearings

BATTERY: 43.2v - 864WH - 20AH - Samsung 50S

RECHARGE: 4 hrs

REMOTE: Evolve Phaze remote with CNC aluminium-reinforced body

WEIGHT: All Terrain: 15.3kg (33lb); Street: 14.1kg (31lb)

RANGE:

• All Terrain:Up to 50km (31 miles)
• Street Wheels: Up to 80km (50 miles)

TOP SPEED: 50km/h (31 mph)

MAX LOAD: 120 kg (265 lbs)

SUITABLE TERRAIN: Short grass, dirt, gravel, roads and footpaths

SLIDES: Yes

HILLS: 45% + gradient.

BRAKING: EFOC2 regenerative braking, super smooth with adjustable brake and acceleration curves using the Explore APP

AESTHETICS: Sophisticated traditional-styled bamboo deck, modernised by the use of feet-locking dropdowns and a 'W' concave.

LIGHTS: Front and rear LED lights. User-customisable control via remote and Evolve app.

• Your new Diablo Bamboo 2 in
• Fast charger (5A)
• Phaze Remote, leash and USB-C charging cable
• Y tool
• Spare screws set

1. Whats the difference between the Hadean and Diablo series?

The Diablo Series is Evolves latest technology release and supersedes the Hadean series. Comparing to the Hadean boards, the diablo series uses larger more powerful motors, a new EFOC 2.0 ESC, it has a higher top speed rating, has 20% more ride times due to the larger capacity battery, stronger acceleration and braking performance and new Forged CNC SuperCarve 2 truck design. The Diablo also comes with an upgrade Software package.

2. Can I upgrade my Hadean board to perform like the Diablo?

It's possible to turn the Hadean into a Diablo, however to do this it will require a new Samsung 50S battery, 2 new 6374 motors and a new EFOC 2.0 ESC . Swapping these parts will be an expensive upgrade, its far better off purchasing the complete Diablo board which includes a new deck and the SuperCarve 2.0 trucks.

3. Can the Renegade be upgraded to the Renegade Diablo?

Yes this is possible. To do this you will need 2 new 6374 motors, a new EFOC 2.0 ESC, new remote firmware and new BMS firmware. Please contact Evolve customer service for enquiries.

4. Can I install the new SuperCarve 2 trucks on my Evolve board?

Yes you can. However you will also need the new AT or Street drive gears that fit the new truck axle. To purchase the new SuperCarve 2 trucks please see the link or contact Evolve customer service for enquiries.

5. Why does my remote vibrate when accelerating hard or riding up a hill?

If your remote vibrates under these riding conditions its possible you have activated ‘Over Current mode’. The Diablo board allows for a large amount of current to be used for a period of 7-8 seconds only. After 7-8 seconds the remote will drop to Sport mode until you release the acceleration trigger in which the remote automatically returns to Corsa mode.

6. Can I install the Diablo 6374 motors on my Hadean?

The motors can fit the Hadean motor plates, however they will not work properly with the Hadean motor controller, BMS and remote due to firmware incompatibility.

7. Why is my remote displaying ‘Heat’ and vibrating?

If your remote displays Heat this means you have activated heat protection on your skateboard and the remote is telling you this. If the motor controller gets over 85 degrees or the battery gets above 70 degrees the motor controller will reduce power until the system recovers and cools down.
