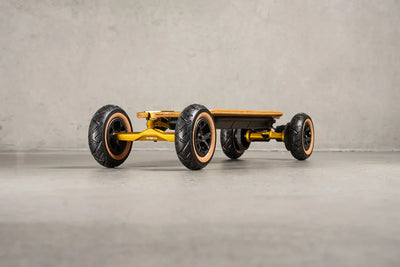

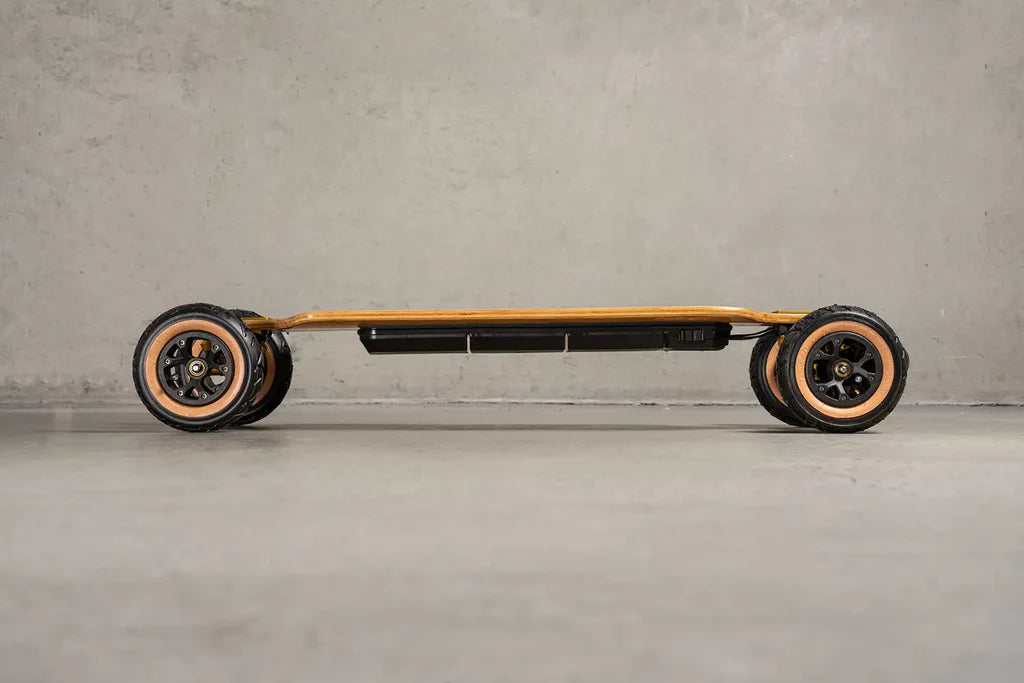

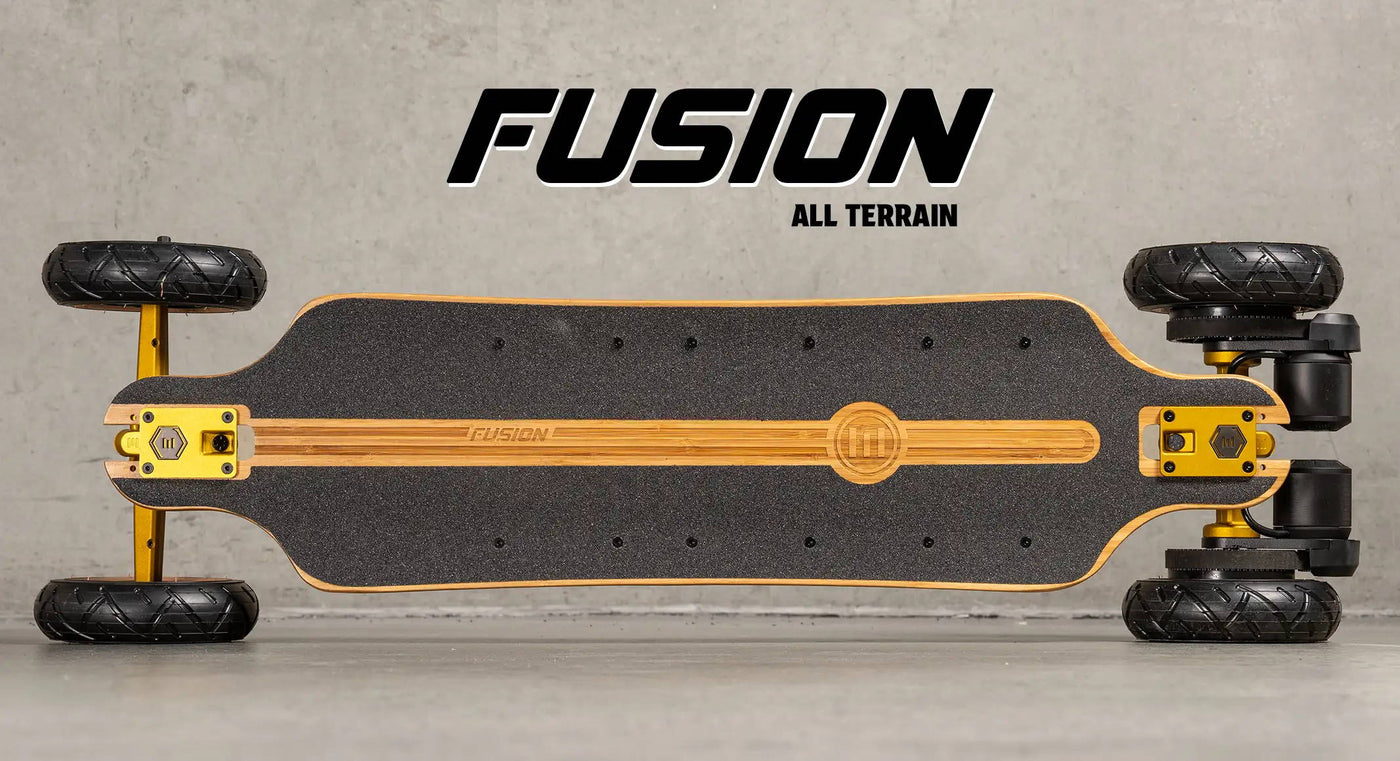

Introducing the Fusion, a groundbreaking electric skateboard where the DNA of Evolve’s most iconic models converge. Crafted from the best of the Diablo, GTR, and Hadean series, the Fusion is the perfect balance of power, precision, and portability. Every element has been reimagined, refined, and fused to create the most versatile board in the Evolve lineup.
At its core, the Fusion runs on a high-efficiency 12S 3P battery (648Wh) paired with the all-new EFOC 2.0 motor controller, delivering seamless acceleration, enhanced thermal management, and a ride that’s as responsive as it is exhilarating. The Fusion Street Board has a top speed of 42 km/h, with a max range of up to 40 km, and hill-climbing torque that laughs in the face of steep grades.

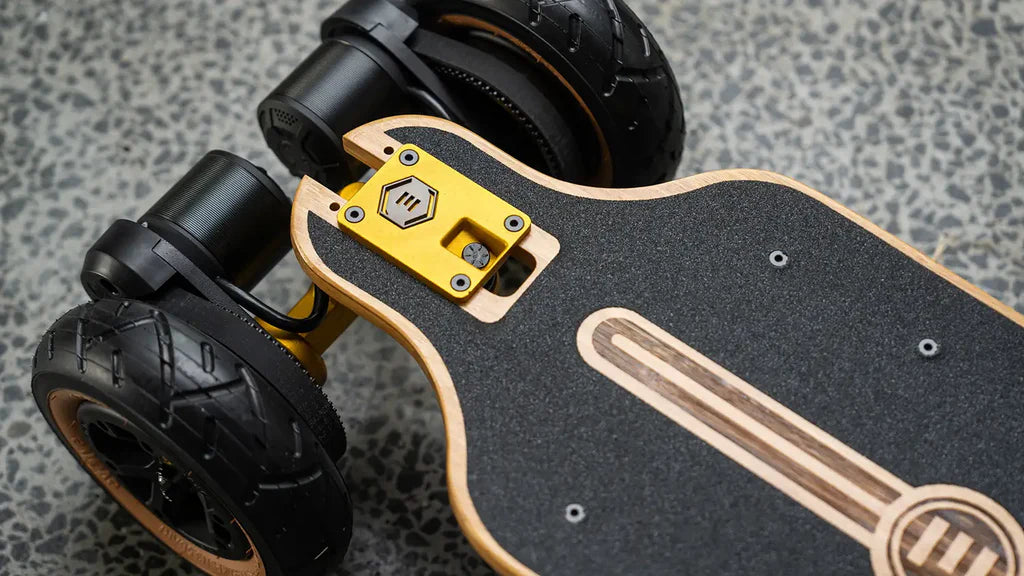

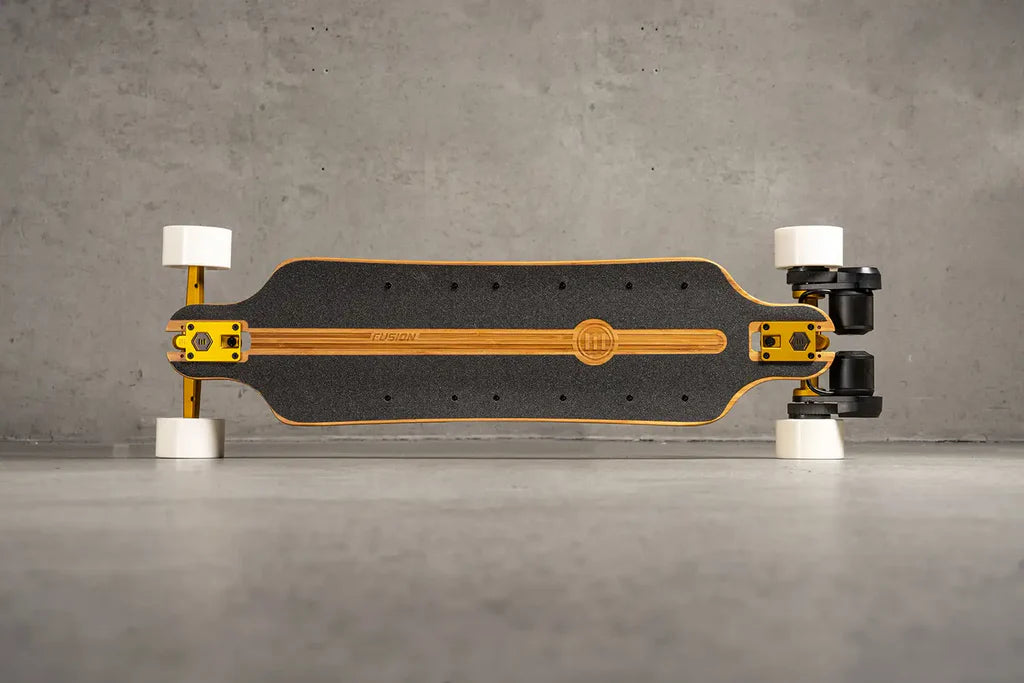

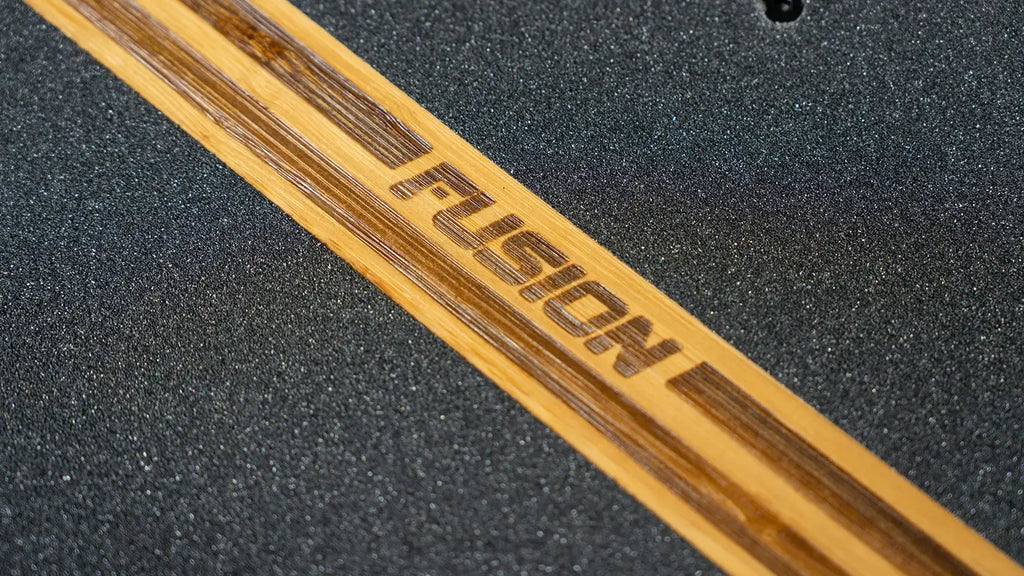

Aesthetics meet engineering in the Fusion’s premium bamboo deck, a compact, lightweight design with a rich, natural finish and precision laser-etched detailing. The deck isn’t just stunning, it’s versatile too. Riders can choose between two battery configurations: the 12S 3P (648Wh) for maximum range, or the 12S 2P (432Wh) for a lighter, more agile setup, tailored to how you ride.
Weighing in at just 12.5 kg, the Fusion proves that high performance doesn’t have to be heavy. With its streamlined profile and compact footprint, it’s easy to carry, store, and ride, without compromising on specs or strength.
Every Fusion rolls out with a premium setup straight from the box. You get Evolve’s signature Gold SuperCarve 2.0 trucks, designed for ultimate stability and control at speed. Paired with tanwall all-terrain tyres and gold precision bearings, this board doesn’t just ride smooth, it looks the part too. It’s our cleanest factory build yet, with style and substance in every detail.
From your daily commute to weekend carves, Fusion ticks every box. It’s powerful, lightweight, stunning to look at, and above all, built to ride. Whether you're a seasoned rider or just stepping into the world of electric skateboarding, the Fusion is the only board you'll ever need.
| DECK MATERIALS: | 3-Ply Bamboo, 2-Ply Fibreglass |
| DECK LENGTH: | 96cm / 38inch |
| WHEEL BASE: | Adjustable - 94cm to 91cm / 37 to 36 Inches |

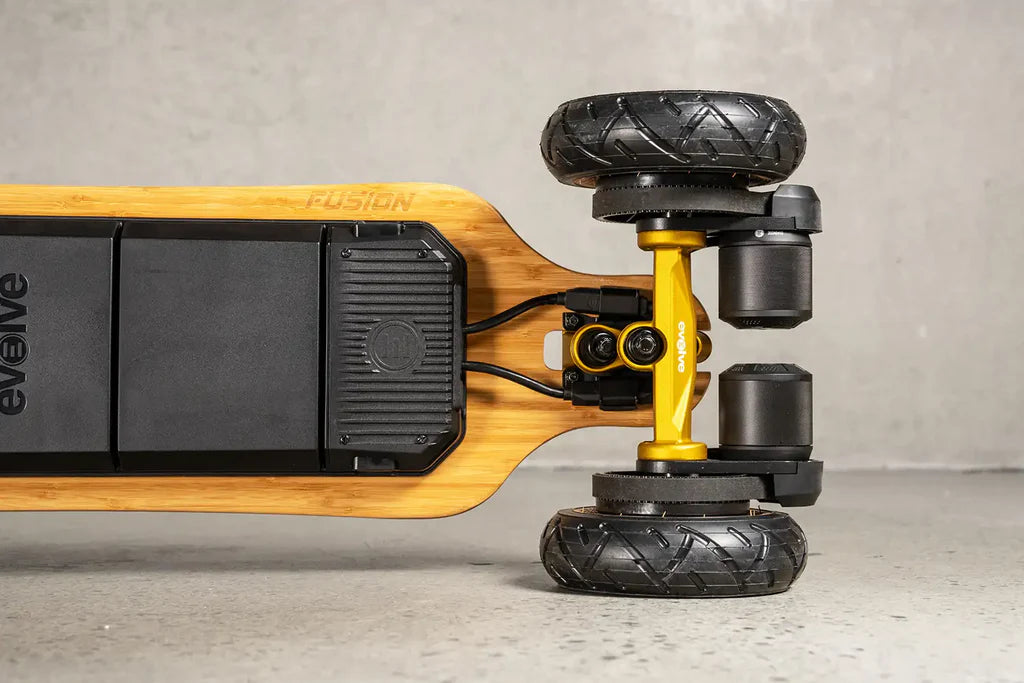

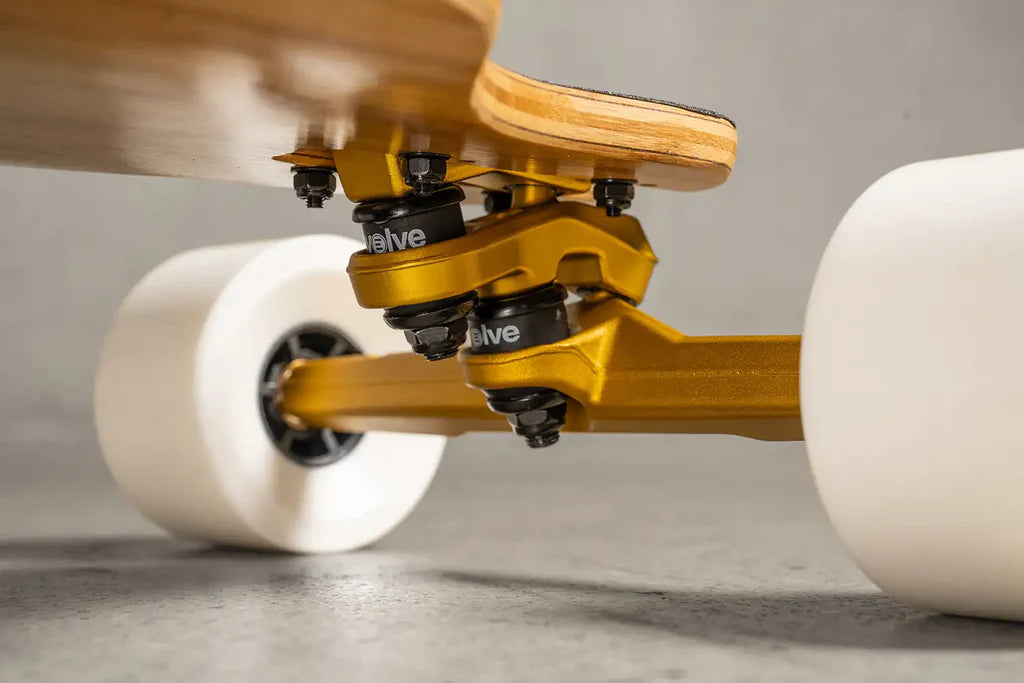

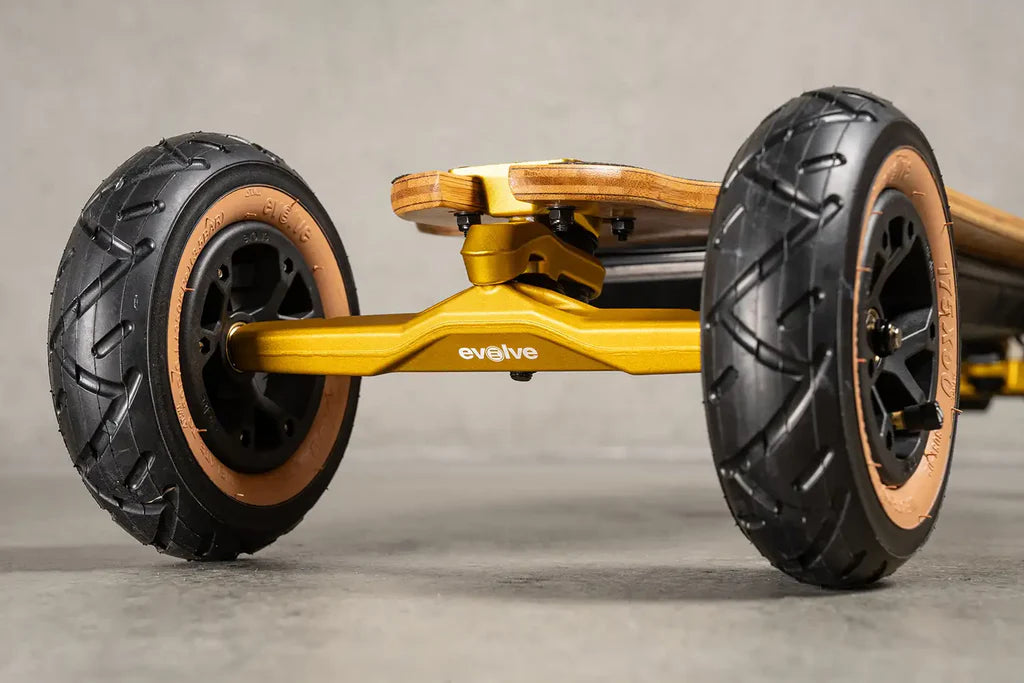

| TRUCKS: | Evolve Supercarve 2 - Forged/CNC - Gold Finish |

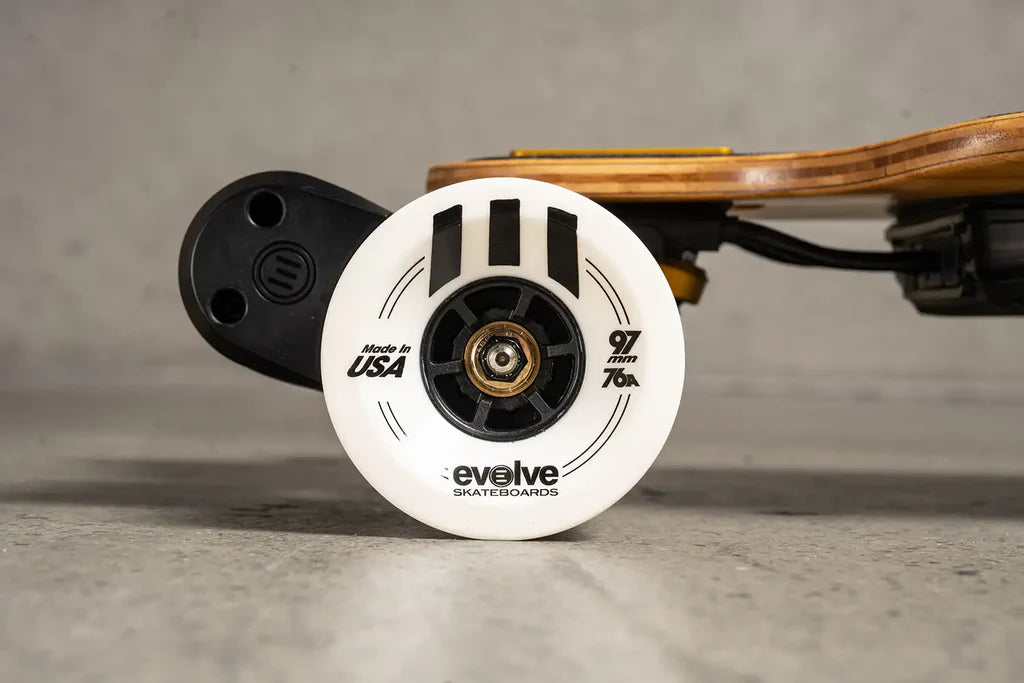

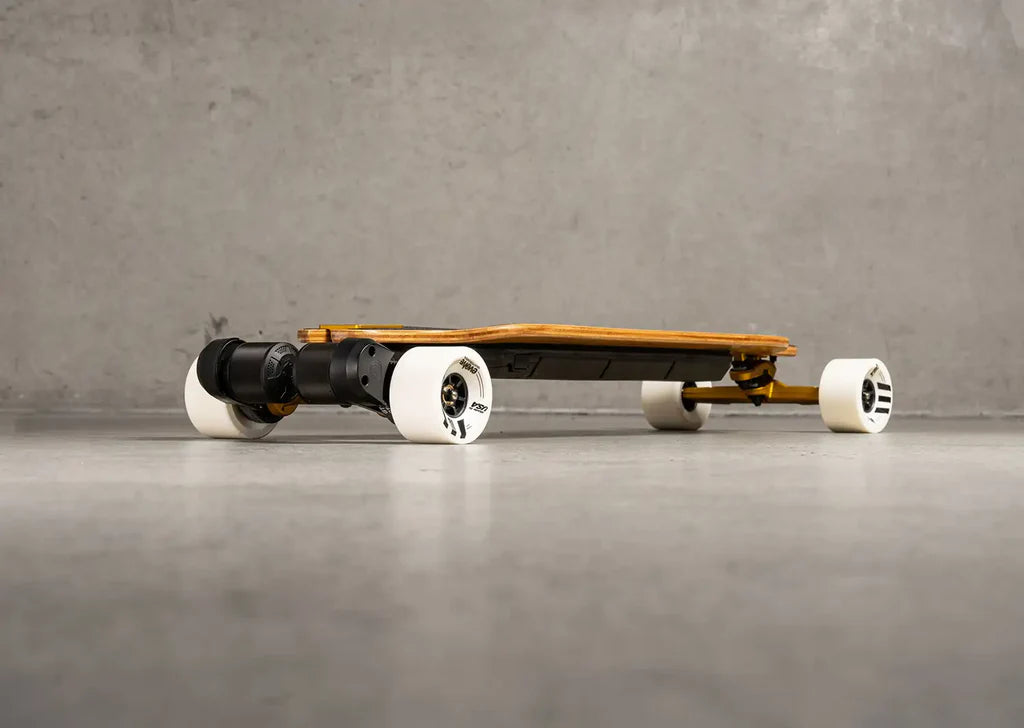

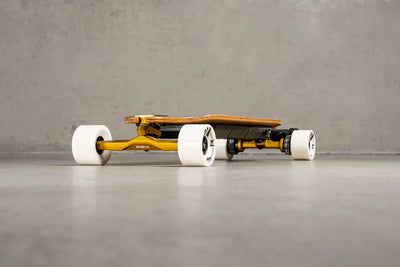

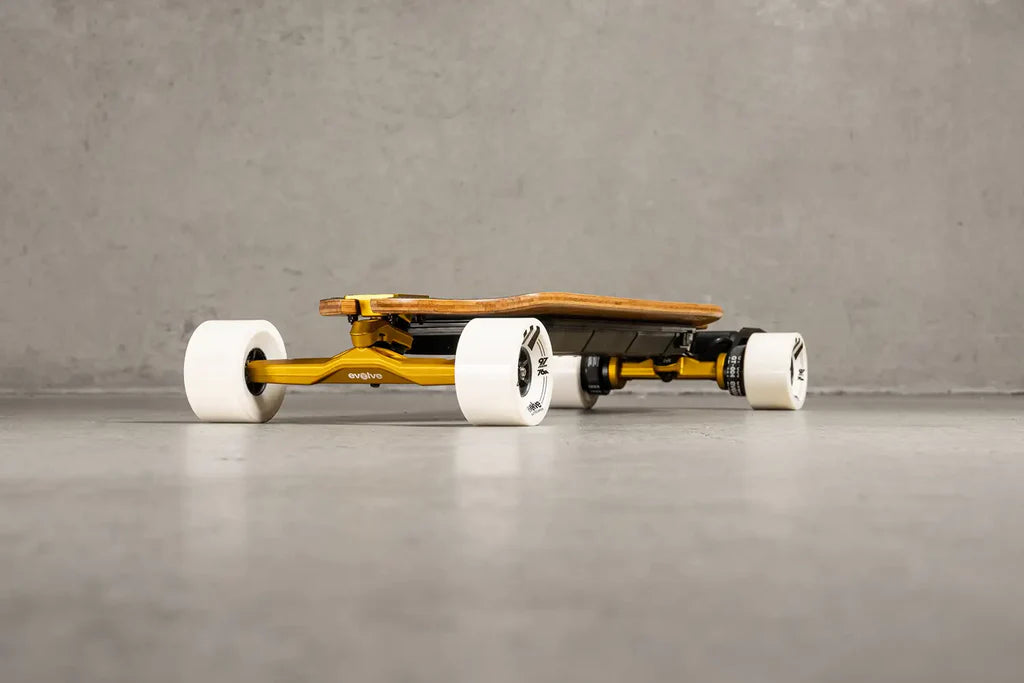

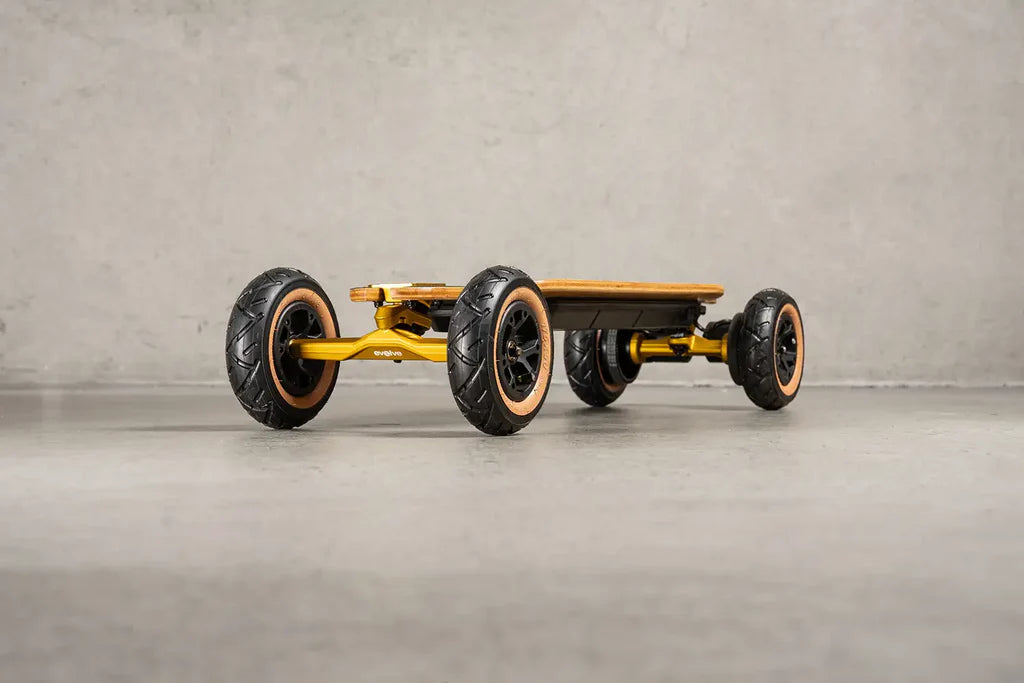

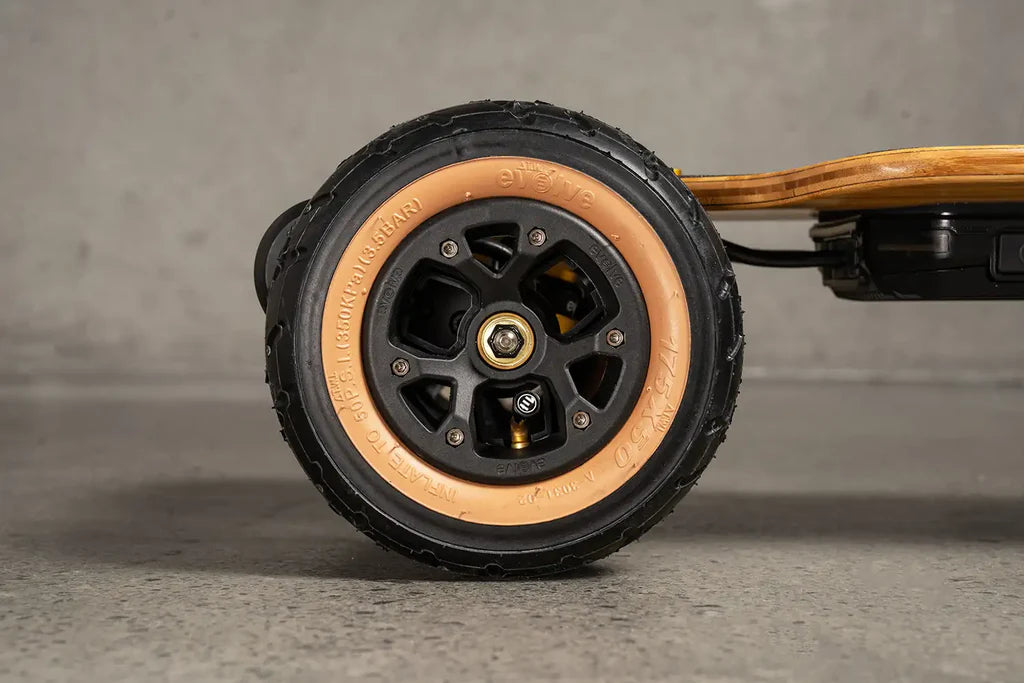

| WHEELS: | Evolve 7" pneumatic all terrain wheels. Also compatible with our street kit which fits the Evolve GT wheel range, 85mm Orangatang Caguamas and the 107mm Evolve/Abec 11 F1 wheels. |

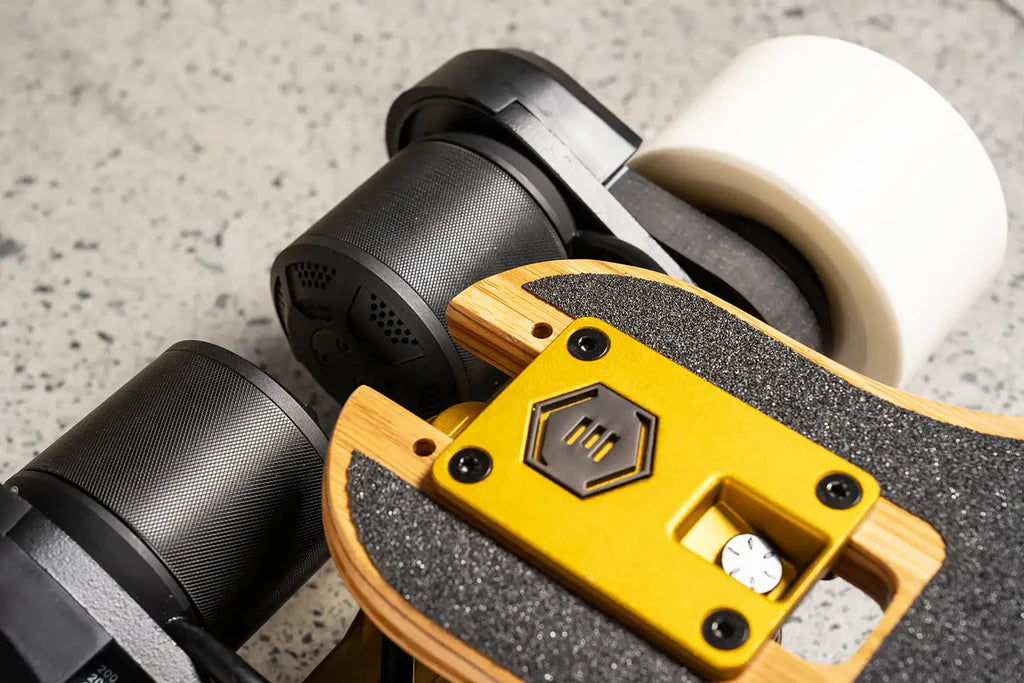

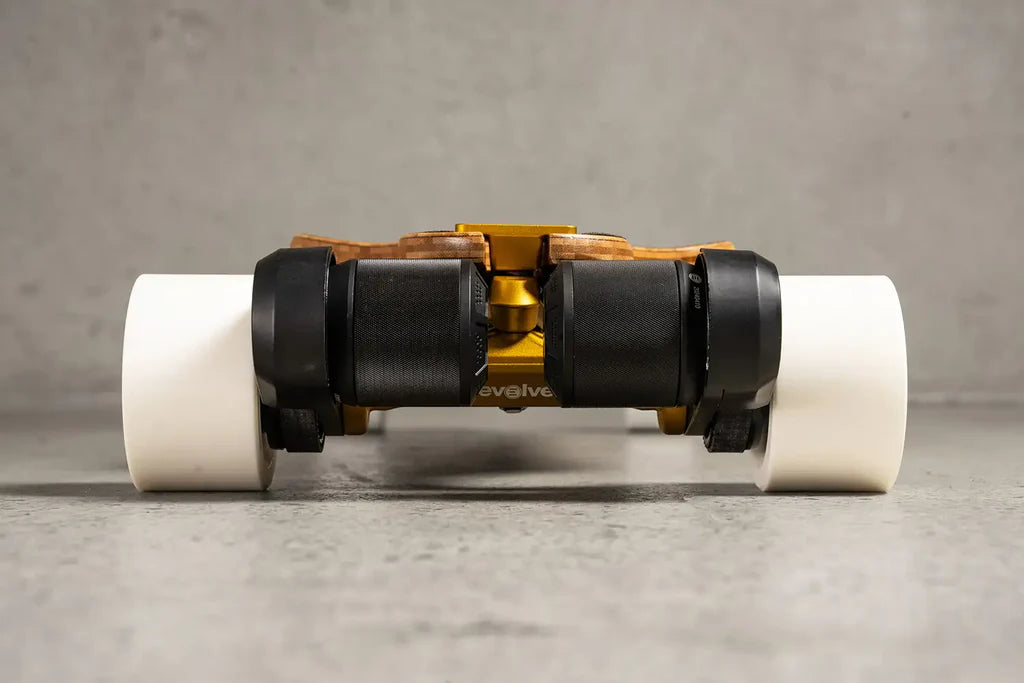

| MOTOR: | Dual 6368 3000w rated (6000w Total) custom brushless sensored motors |
| MOTOR CONTROLLER / ESC: | EFOC 2 - Evolve Custom 50V, 200A Dual-Motor Driver, FOC motor commutation, Bluetooth Connection. |
| BEARINGS: | Evolve Gold Precision Bearings |

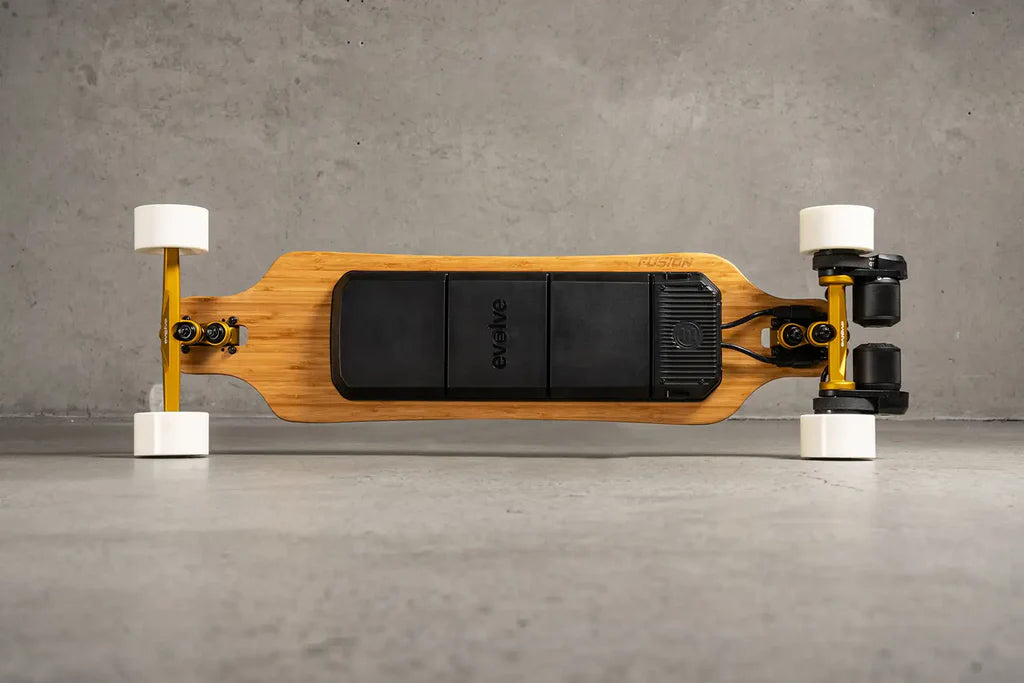

| BATTERY: | 12S3P 50.4v 648Wh 15AH Samsung 50S (Also available in a 12S2P battery setup) |
| RECHARGE: | 4 hrs |
| REMOTE: | Evolve Phaze remote with CNC aluminium-reinforced body |
| WEIGHT: | 12.5 kg (27.5 lbs) |
| RANGE: | Up to 60km (37 miles) (Street Wheels) / 40km (25 miles) (AT Wheels) |
| TOP SPEED: | 50km/h (31 mph) (Street Wheels) / 42km/h (26 mph) (AT Wheels) |
| MAX LOAD: | 120 kg (265 lbs) |
| SUITABLE TERRAIN: | Sealed surfaces- asphalt & concrete roads & footpaths |
| SLIDES: | Street: Yes / All-Terrain: Offroad yes, not recommend on sealed surfaces |
| HILLS: | 35% + gradient. |
| BRAKING: | EFOC2 regenerative braking, super smooth with adjustable brake and acceleration curves using the Explore APP |
| AESTHETICS: | Sophisticated traditional-styled bamboo deck. Concave from toe to heel for grip & comfort. |
| LIGHTS: | Front and rear LED lights. User-customisable control via remote and Evolve app. |
Why should I buy the Fusion over the Diablo Bamboo?
If you don’t need the raw range or power of the Diablo, the Fusion is lighter, more portable, and easier to handle. More nimble, more cost-effective. Still plenty of punch.
How does the Fusion compare to the Hadean in power and feel?
Fusion’s got a bit more snap thanks to the EFOC 2.0 and Samsung 50S battery. You’ll feel that extra torque and braking responsiveness.
Is the Fusion an upgrade from the Bamboo GTR?
Yes. It’s faster, goes further, rides smoother, and looks sharper. SuperCarve 2 trucks, built-in lights, better battery tech, and the latest motor controller.
Battery & Motor Questions
Can I use a 12S2P battery on the Fusion?
Yes. Makes the board even lighter, but range will drop.
Can I swap in higher-wattage motors?
No. The motor controller is tuned to the current spec. Swapping would break the setup.
Can I use the Fusion battery on my Diablo?
Yes, but only if you also use the Diablo motor controller. The controller must match the motor.
Can I put Diablo motors on the Fusion?
Yes, but you’ll need the EFOC 2.0 3500 motor controller from the Diablo.
Can I install Fusion electronics on my GTR deck?
No.
Ride & Performance
Is the Fusion good for heavier riders?
Yes. Rated up to 120kg (265lbs).
Is it good for beginners?
Absolutely. Smooth enough to learn on, strong enough to grow into. Customise power and speed through the Explore app.
Is the Fusion built for long rides?
Yes. Up to 40km (25mi) on AT, 60km (37mi) on street. Plenty for group rides.
What’s the difference between the Fusion and Diablo?
Fusion has less range, speed, and acceleration. Different deck. Still a serious board, just not as extreme.
Does the Fusion use the same motor controller as the Diablo?
No. Each is tuned specifically for its motor setup.
Compatibility & Upgrades
Can I upgrade my GTR to a Fusion?
No. Different components, different layout.
Can I fit Diablo 3500w motors on the Fusion deck?
Yes, but only with the Diablo motor controller.
Are Fusion motors the same as Hadean or GTR?
Yes, same motors as GTR Series 2.
Can I upgrade the Fusion with custom trucks or hubs?
Yes. Coloured trucks and custom hubs work.
Is the Fusion deck the same as the GTR Bamboo?
Same mould and shape. New design, different battery mounting points.
Is the Fusion compatible with GTR or Stoke X street gears and wheels?
Only if they’re SuperCarve 2 compatible.
Other FAQs
Is the Fusion a mini Diablo?
Kind of, it uses the same components, just not tuned to the same extremes. Still a beast in its own right.
Is the Fusion replacing the GTR Bamboo?
No. It sits between GTR and Diablo in price and performance.
Is there a Fusion Carbon coming?
No.
Can I use the Fusion battery on a Hadean Bamboo board?
Yes, with the 12S3P version and existing motors/controller.
Can I use the 12S3P Fusion battery on the Diablo?
Yes, but only on Bamboo models and only with the Diablo controller.
Is the 12S2P (Stoke X) battery enough for serious rides?
For short rides or commuting, yes. Expect around 20-25km (12-15mi) on AT, less if pushing hard.
1. Motors:
3000W motors can be used with: Fusion, GTR2, Stoke X, Hadean Series, Renegade 1 boards.
3500W motors can be used with: Diablo Series (Carbon, Bamboo Renegade).
2. Battery:
12S3P 15Ah battery can be used on: Diablo and Fusion decks.
12S4P 20Ah battery can only be used on: Hadean and Diablo Series.
12S4P 16Ah battery can only be used on: Hadean Series.
12S2P 10Ah battery can be used on: Stoke X, Fusion, Diablo, Hadean decks.
3. Motor Controllers (EFOC 1.0 & 2.0):
Diablo MC (EFOC 2.0):
Only compatible with Diablo boards using 3500W motors. Diablo uses specific Diablo firmware to operate 3500W motors.
Fusion and Stoke X MC (EFOC 2.0):
Only compatible with 3000W motors. Firmware is configured for 3000W motors.
Hadean / GTR2 MC (EFOC 1.0):
Only compatible with Hadean and GTR2 models. Not compatible with Diablo, Stoke X, or Fusion boards.
Transition to EFOC 2.0:
Once EFOC 1.0 is out of stock, EFOC 2.0 will be used across all board models, including for after-sales support for Hadean and GTR2 models.
Identification:
EFOC 2.0 uses a RED PCB.
Yellow sticker = Diablo boards.
White sticker = Fusion, Stoke X, Hadean, and GTR2 boards.
Important Note:
While batteries can be shared across different board models, the motor controller must always match the motor size:
3500W motors must use the Diablo MC EFOC 2.0.
3000W motors must use the Fusion / Stoke X / Hadean MCs EFOC 2.0 for proper operation.
